Gravity Feed Gas Chlorinator

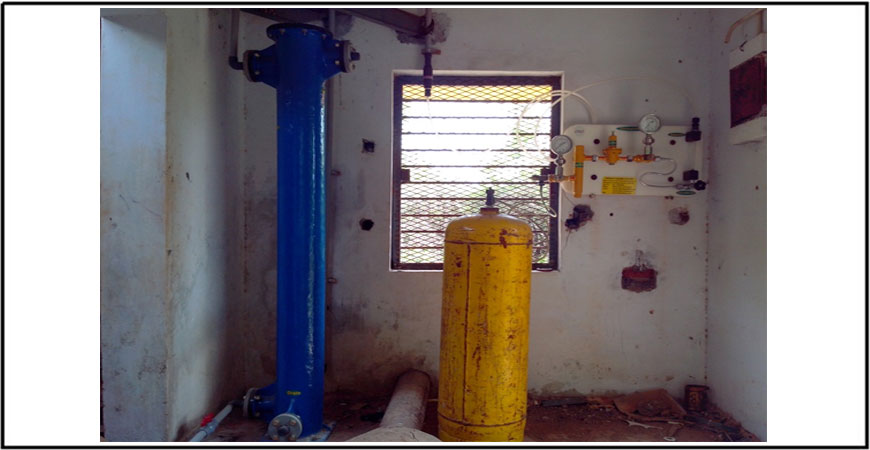

Chlorine Gas from Cylinders /Tonners at regulated pressure passes through a Flow Control Valve, Rotameter/Flowmeter, Moisture-Trap and Check Valve to Packed Absorption Tower where it gets uniformly mixed with the incoming water. The chlorine solution is then discharged to the point of application [normally discharged into a sump or reservoir at elevation below the Absorption Tower only]. The Flowmeter directly indicates the amount of chlorine consumed. It is very important that the required water flow to the Absorption Tower to be constant and continuous at the time of operation for safety reasons.
